IMMERSION HEATERS
Brand: Alfa Heaters, Product Code: Standard, Availability: In Stock
Product Overview:

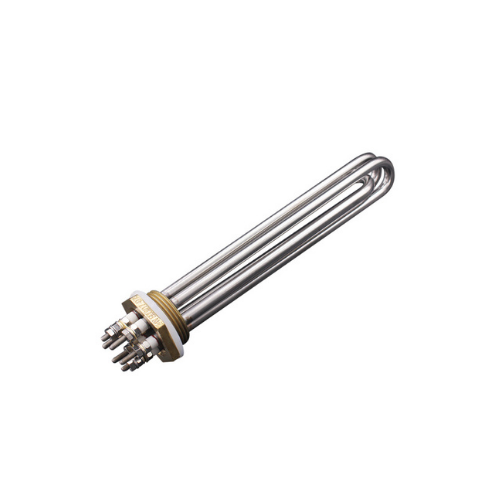

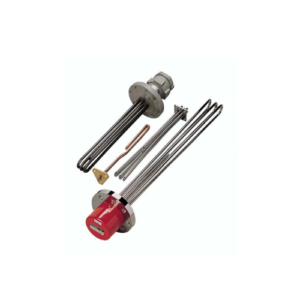

Alfa Heaters manufactures high-efficiency Immersion Heaters designed for directly heating liquids in a wide range of industrial applications. These heaters feature tubular elements formed into hairpin shapes and securely brazed onto brass or stainless steel flanges in standard sizes: 1″, 1.5″, 2″, 2.5″, and 3″. For enhanced temperature control, these heaters can be integrated with thermostats.
Offering a maximum watt density of 8 W/cm², immersion heaters ensure quick, even heating and are capable of delivering almost 100% energy efficiency since heat is transferred directly into the medium. These heaters are ideal for heating water, oils, chemicals, and process fluids across storage tanks, boilers, and preheating systems.
Mounting Options:
Screwed Mounting – Compact and ideal for smaller tanks
Flanged Mounting – Robust sealing for larger volumes
Side Mounting – Versatile placement in horizontal systems

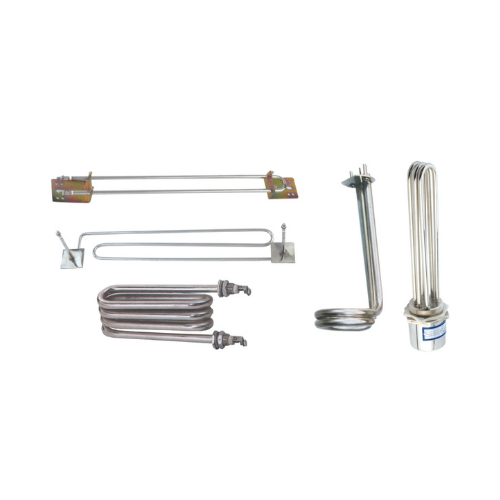

Types of Immersion Heaters:
Finned Tubular Heaters
Finned heaters are designed for fast air heating, using fins (SS or MS) mounted onto the tubular elements to increase surface area and enhance heat dissipation. They’re widely used in duct heaters and air-handling systems.
Circulation Heaters
Used in both forced and natural circulation systems, these units include a flanged immersion heater, insulated vessel, inlet/outlet ports, and a built-in thermostat. Ideal for heating flowing liquids and gases, including water, oils, and process air.
Key Features:
High thermal efficiency with low heat loss
Sheath materials: SS, Copper, Incoloy
Voltage: Up to 480 V AC
Max sheath temperatures:
Copper: 200°C
SS: 650°C
Incoloy: 875°C
Long service life and corrosion resistance
Multiple terminal options with ceramic insulators
Ordering Information:
To customize your heater, please provide:
Sheath material
Diameter & length
Wattage & voltage
Bend configuration
Mounting type
Thermostat need
Flange & terminal specifications
Frequently Asked Questions
Immersion heaters are used for directly heating liquids like water, oil, and chemicals in tanks, pipelines, and vessels for industrial and commercial applications.
Sheaths are available in Stainless Steel (SS), Incoloy, and Copper, depending on the application and required corrosion resistance.
Flange sizes include 1", 1.5", 2", 2.5", and 3" in brass or stainless steel, suitable for different mounting requirements.
Yes, immersion heaters can be supplied with a built-in thermostat for automatic temperature control.
The heaters offer up to 8 watts/cm², ensuring fast and efficient heat transfer.
Yes, finned tubular heaters are available for air heating applications and are made with SS or MS fins for enhanced surface area and heat transfer.
A circulation heater heats liquids or gases in motion and includes a flanged heater with an insulated vessel, making it suitable for flow-through systems.
Yes, Alfa Heaters provides customized solutions based on size, wattage, voltage, sheath material, and mounting style.
Specify sheath material, diameter, length, wattage, voltage, flange size, terminal type, and thermostat requirement.
Industries include oil & gas, chemical processing, food & beverage, HVAC, and water treatment.
