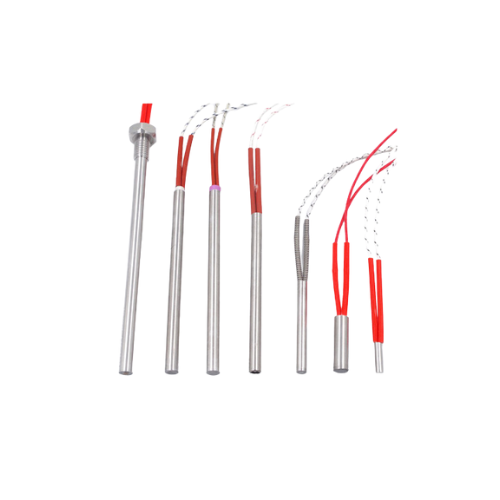

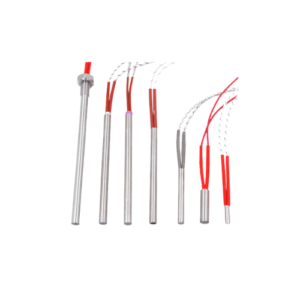

Cartridge Heaters
Brand: Alfa Heaters, Product Code: Standard, Availability: In Stock
Product Description
Alfa Heaters is a premier manufacturer and supplier of High and Low Watt Density Cartridge Heaters, offering precision-engineered solutions for industrial heating applications. These cartridge heaters are crafted for superior performance, long service life, and adaptability across various industries. Alfa specializes in ceramic cartridge heaters and space heater elements, with a focus on both standard and custom heating solutions.
Technical Specifications
🔹 High Watt Density Cartridge Heaters
Sheath Material: SS316 or Incoloy 800
Insulation: High-purity Magnesium Oxide (MgO)
Watt Density: Up to 12 W/cm²
Construction: Densely packed MgO for excellent heat transfer and dielectric strength
Application: High-performance industrial heating tasks
🔹 Low Watt Density Cartridge Heaters
Sheath Material: SS304
Insulation: Ceramic brick stacks
Heating Element: Helically wound Nickel-Chrome (NiCr) wire
Watt Density: Up to 4 W/cm²
Application: Lower temperature applications requiring controlled heating
Features
High and Low Watt Density models available
Uniform heating with superior heat transfer
Durable Stainless Steel (SS304 / SS316) or Incoloy construction
Multiple termination styles
Optional inbuilt thermocouple for temperature control
Customized design available per application
Available Termination Types

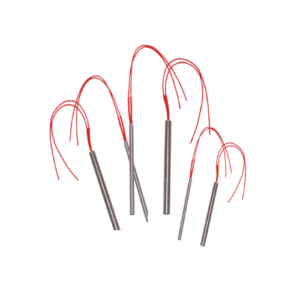

Fully flexible high-temperature wire
90° L-shaped with stainless steel conduit pipe
Plug-type termination

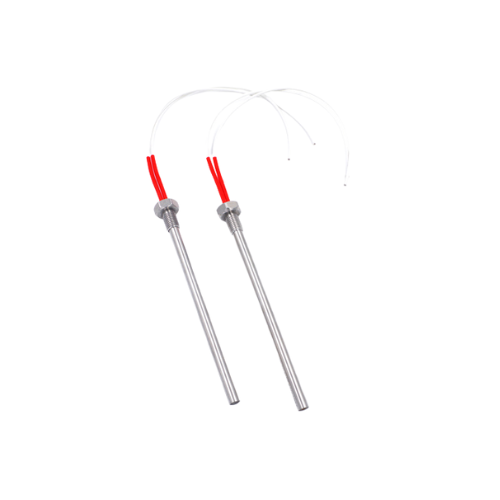

Immersion type
Inbuilt thermocouple options (Type J / K)
FAQs - Cartridge Heaters
High watt density heaters use compact MgO insulation and can handle intense heating applications (up to 12 W/cm²), while low watt density heaters are built with ceramic bricks and offer gentler heating (up to 4 W/cm²).
Yes, Alfa Heaters provides optional inbuilt thermocouples (Type J or K) for precise temperature monitoring.
SS304 is used for low-density heaters; SS316 or Incoloy 800 is used for high-density models, offering excellent corrosion and temperature resistance.
Yes, customers can specify diameter, length, wattage, voltage, and lead wire length to get heaters tailored to their application.
Standard sizes are available in stock. Custom designs typically ship within 3–7 business days, depending on complexity.
Yes, immersion-type cartridge heaters are suitable for heating liquids and gases in tanks or closed systems.
Depending on the sheath and insulation, cartridge heaters can operate up to 750°C (1382°F).
Termination types include flexible wires, plug type, 90° L-bend with conduit, immersion, and custom configurations.
Wattage density is chosen based on the application type, required heating rate, material being heated, and space constraints.
Yes. With proper temperature control and installation, they are designed for continuous and reliable industrial use.
